Adapting Through Change – A Small Residential BIM Project in the USA
Project Name: Wood Residence
Location: USA
Type: Custom Two-Story Residential Home
Size: ~5,600 sq. ft
Timeline: 12 Months
Tools Used: Revit, BIM 360, Twin Motion, Navisworks
Project Overview
Wood Residence was envisioned as a cozy, energy-efficient, and smart home for a semi-retired couple relocating to the scenic Blue Ridge Mountains. Built on a sloped site and surrounded by mature trees, the design required careful planning — not just to meet their lifestyle needs, but to respect the site’s constraints and local zoning regulations.
Although small in scale, the project was complex beneath the surface. The homeowners were hands-on, design-conscious, and environmentally focused. BIM was introduced early in the process, not just to visualize ideas, but to manage evolving decisions and prevent construction surprises.
Phase 1: Design & BIM Integration

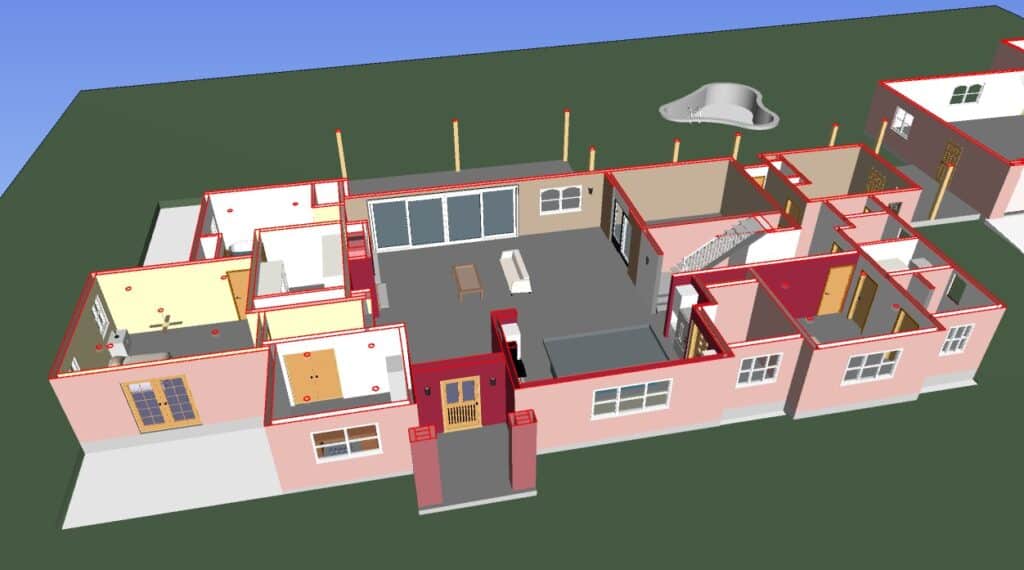

The design began in Revit, with an architectural model that grew in detail week by week. Early integration of the structural and MEP consultants allowed the team to:
- Analyze solar access and optimize window placement.
- Coordinate duct routing with timber roof framing.
- Adjust wall thicknesses to accommodate additional insulation for energy efficiency.

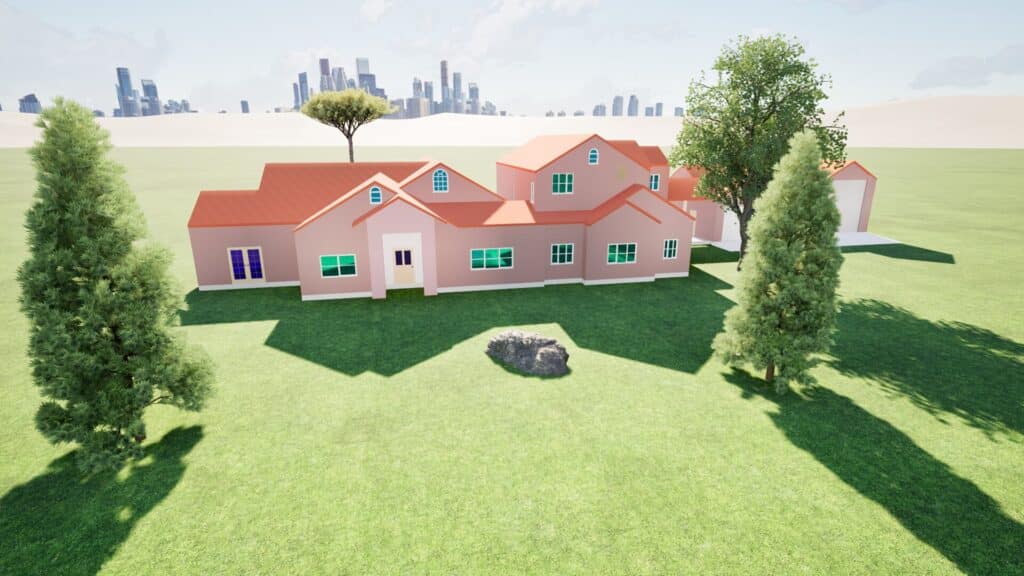

The use of BIM 360 allowed real-time communication with the clients, who often travelled. Design updates were shared through visual walkthroughs created in Enscape, helping them make quicker decisions without needing to be onsite.
Mid-Project Disruptions: When the Design Changed
Halfway through design documentation — just before permit submission — the homeowners made major changes after visiting a similar home:
Key Mid-Project Changes:
- Swapped a flat roof over the living room to a sloped cathedral ceiling for aesthetic and daylighting benefits.
- Reoriented the master suite to maximize mountain views — affecting window placement, structure, and HVAC runs.
- Added a garage workshop, requiring regrading and foundation changes.
- Opted to install a radiant floor heating system last minute.
These weren’t minor tweaks — they impacted every system in the model.
BIM to the Rescue: Handling Design Revisions
Instead of going back to square one, the team used BIM to adapt quickly:
- Structural framing adjustments were made in the model and analyzed within 48 hours.
- MEP consultants rerouted ductwork and coordinated hydronic piping layouts using the updated Revit model.
- Clash detection using Navisworks flagged several key issues, including a ridge beam intersecting with a ventilation duct.
- Updated design views and walkthroughs were shared with the homeowners in real time — eliminating the usual email back-and-forth and potential miscommunication.
The change to radiant heating, in particular, could’ve been a major delay — but because the slab layout, mechanical zone mapping, and manifold placements were coordinated in BIM, it was installed without a hitch.
Construction Challenges & Site Realities
Despite the digital prep, several constructability issues emerged on-site — but again, BIM helped smooth things out.
Issue 1: Roof Slope Conflict with Clerestory Windows

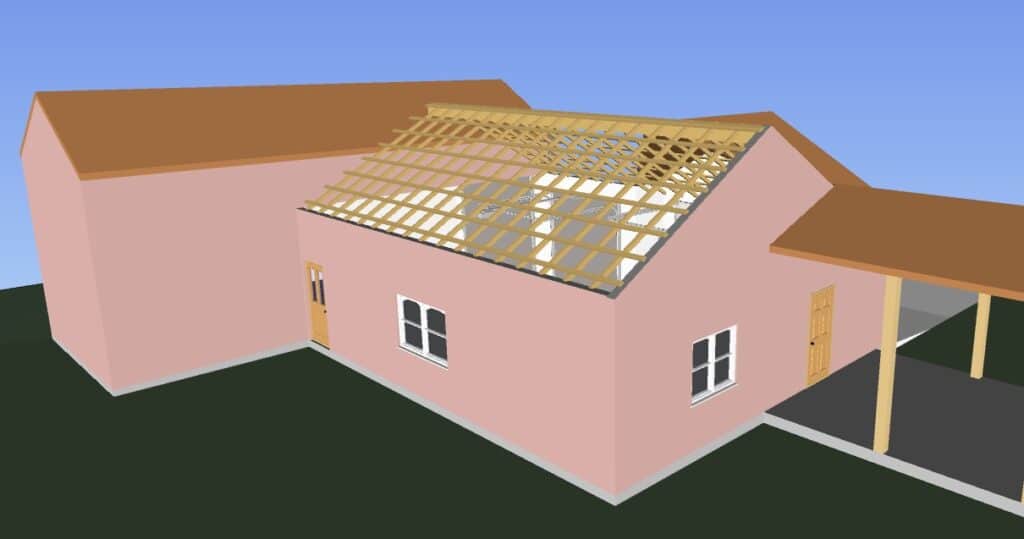

The new sloped ceiling introduced clerestory windows that clashed with the truss layout.
Resolution:
The clash was visualized in Revit. The team revised the truss package with the supplier using 3D exports and prevented delays before framing started.
Issue 2: Utility Room Too Small for Systems
The last-minute radiant heating system, plus water storage, made the utility room too cramped.
Resolution:
A quick model audit led to expanding the room by 2 feet into a mudroom space — the team simulated the equipment fit using BIM before any walls were built.
Issue 3: Foundation Error Due to Site Grade Assumption
Field excavation uncovered a slight discrepancy in the original grading plan, which could’ve thrown off the foundation step.
Resolution:
The site survey model was updated, and foundation steps were recalculated within hours — avoiding costly rework or concrete waste.
Outcomes & Measurable Impact
| Metric | Outcome |
|---|---|
| Schedule Delay | Only 2 weeks added despite major design shifts |
| RFIs during construction | 7 (well below typical custom home averages) |
| Budget deviation | +3% (within owner-approved range) |
| Waste reduction | 18% less lumber waste due to precise quantity takeoffs |
Lessons Learned
- Even small projects can get complicated fast. When clients change their minds mid-design, having a BIM-enabled process helps manage the ripple effect.
- Coordination between trades was smoother than on past projects due to shared models and centralized issue tracking.
- Site conditions are still real — but BIM gives you flexibility to adapt without costly delays or rework.
The wood Residence proves that BIM isn’t just for skyscrapers or big-budget developments. On this small but intricate project, it gave our team a clear, collaborative platform from design changes to solving on-site surprises. In the end, the homeowners got their dream home, and the team delivered it with fewer hiccups, fewer RFIs, and stronger communication across the board.
